AWS EKS Kubernetes Discovery with IAM User or Role

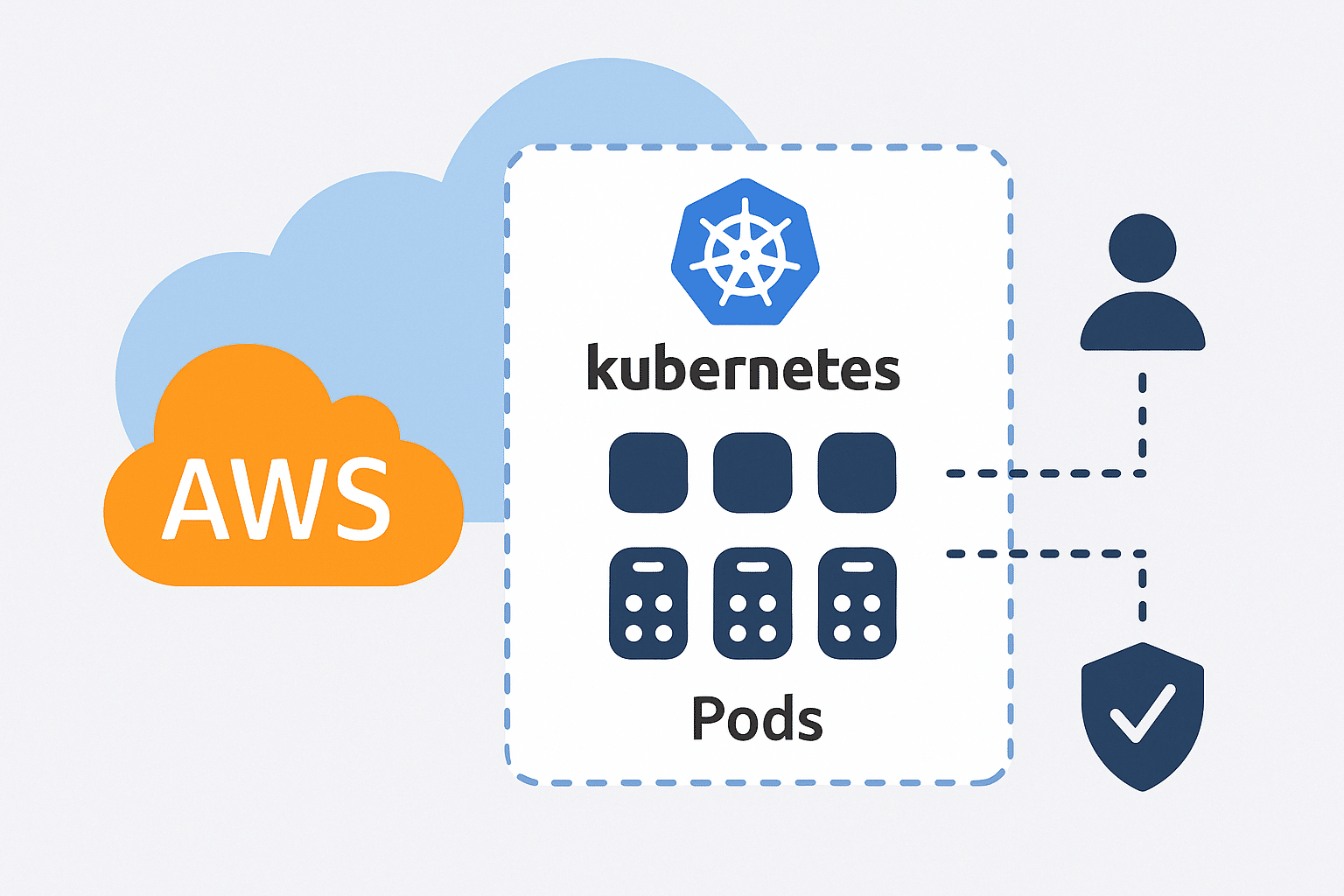

ChatGPT Image Aug 8 2025 04_23_56 PM Diagram of a Kubernetes cluster in AWS showing pods and access control

Cloud-native infrastructure isn’t just a trend—it’s the foundation of modern IT environments. As JDisc continues evolving, we’re excited to introduce full support for EKS Kubernetes Discovery, allowing you to scan and retrieve Kubernetes resources on Amazon EKS using either an IAM user or IAM role.

Whether you’re using temporary credentials, instance roles, or IRSA inside EKS, our guide helps you configure secure and compliant access for scanning Kubernetes nodes, pods, and services via JDisc.

🔍 Complete Guide to EKS Kubernetes Discovery via IAM User or Role

This guide walks you through connecting to an EKS cluster, retrieving Kubernetes resources, and running programmatic discovery using a valid kubeconfig—whether you’re using an IAM user or an IAM role.

Illustration of a Kubernetes cluster inside AWS using Amazon EKS
This image shows the structure of a Kubernetes cluster running inside Amazon Web Services

📌 Prerequisites for EKS Kubernetes Discovery

Before you begin, ensure the following are set up:

  • ✅ AWS CLI installed

  • ✅ kubectl installed

  • ✅ EKS cluster created (e.g., eks-test1)

  • ✅ Either:

    • IAM user with credentials

    • OR IAM role with sts:AssumeRole permissions

  • ✅ AmazonEKSClusterAdminPolicy attached to the principal

    • ✅ IAM principal has the following permissions:

  • {
    "Version": "2012-10-17",
    "Statement": [
    {
    "Sid": "VisualEditor0",
    "Effect": "Allow",
    "Action": [
    "eks:ListFargateProfiles",
    "eks:DescribeNodegroup",
    "eks:ListNodegroups",
    "eks:DescribeFargateProfile",
    "eks:ListAddons",
    "eks:DescribeCluster",
    "eks:ListClusters",
    "eks:DescribeAddon"
    ],
    "Resource": "*"
    }
    ]
    }

👤 Part A: EKS Kubernetes Discovery with IAM User Access

🔐 Step 1: Configure AWS CLI

aws configure

Provide:

  • Access Key ID

  • Secret Access Key

  • Region (e.g., eu-central-1)

  • Output Format: json

Verify identity:

aws sts get-caller-identity

🛠️ Step 2: Grant IAM User Access in EKS

  1. Go to EKS > eks-test1 > Access > Manage Access

  2. Click Create access entry

  3. Enter the following:

    • IAM principal ARN: arn:aws:iam::Account_ID:user/jdisc-test-user

    • Type: Standard

    • Username: jdisc-test-user

  4. Attach: ✅ AmazonEKSClusterAdminPolicy

  5. Leave groups blank

  6. Click Review & Create

✅ This replaces the legacy aws-auth ConfigMap method.

🔄 Step 3: Update kubeconfig

aws eks update-kubeconfig --name <CLUSTER> --region <REGION> \ --role-arn arn:aws:iam::<ACCOUNT_ID>:role/jdisc-eks-dev

🔄 Step 4: Set the secret token and the secret key in the environment variables

✅ Step 5: Test with kubectl

kubectl get nodes
kubectl get pods --all-namespaces

If you receive an Unauthorized error, verify:

  • The IAM user is listed in Access Entries

  • You’re using the correct AWS profile

  • The kubeconfig is properly updated.

🔁 Part B: EKS Kubernetes Discovery via IAM Role

This method is ideal if:

  • You use IRSA, EC2 instance roles, or temp credentials

  • You prefer sts:AssumeRole over storing credentials directly

Note Important: The Cluster IAM role must have inside in the Trust relationships: “Action”: [“sts:AssumeRole”, “sts:TagSession”]

🔐 Step 1: Create IAM Role

  1. Go to IAM > Roles > Create Role

  2. Select Trusted entity = Another AWS Account

  3. Enter your AWS account ID

  4. Attach: AmazonEKSClusterAdminPolicy

  5. Name it e.g., AssumeRoleDiscoveryTest

🛠️ Step 2: Trust Relationship Policy

Use this trust policy:

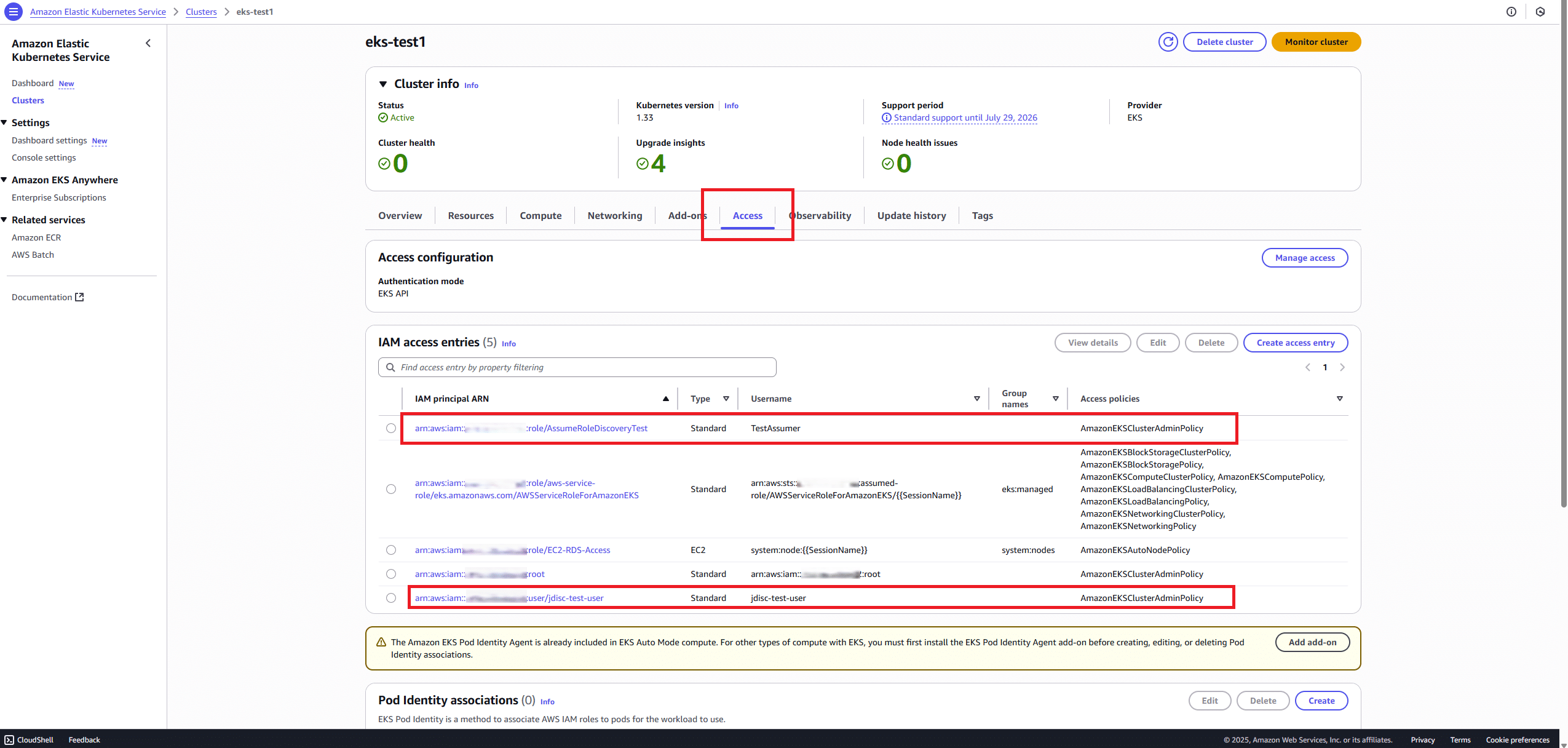

Access control configuration for Amazon EKS cluster with IAM integration"
The image outlines required permissions and IAM roles or users needed to access and manage the EKS cluster

🔧 Step 3: Grant Role Access in EKS

Follow the same steps as in Part A → Step 2, but use:

  • IAM Principal ARN:
    arn:aws:iam::Account_ID:role/AssumeRoleDiscoveryTest

  • Username: testassumer

  • Access Policy: AmazonEKSClusterAdminPolicy

🔄 Step 4: Update kubeconfig for the Role

aws eks update-kubeconfig --name <CLUSTER> --region <REGION> \ --role-arn arn:aws:iam::<ACCOUNT_ID>:role/jdisc-eks-dev

🔄 Step 5: Set the secret token and the secret key in the environment variables

🧭 Configure JDisc for EKS Kubernetes Discovery

  1. Go to JDisc → Configuration → PaaS

  2. Click Add new configuration

  3. Paste the same kubeconfig you generated

  4. Save the entry with a meaningful name (e.g., eks-test1-config)

  5. ✅ After saving, click Test Connection to verify access

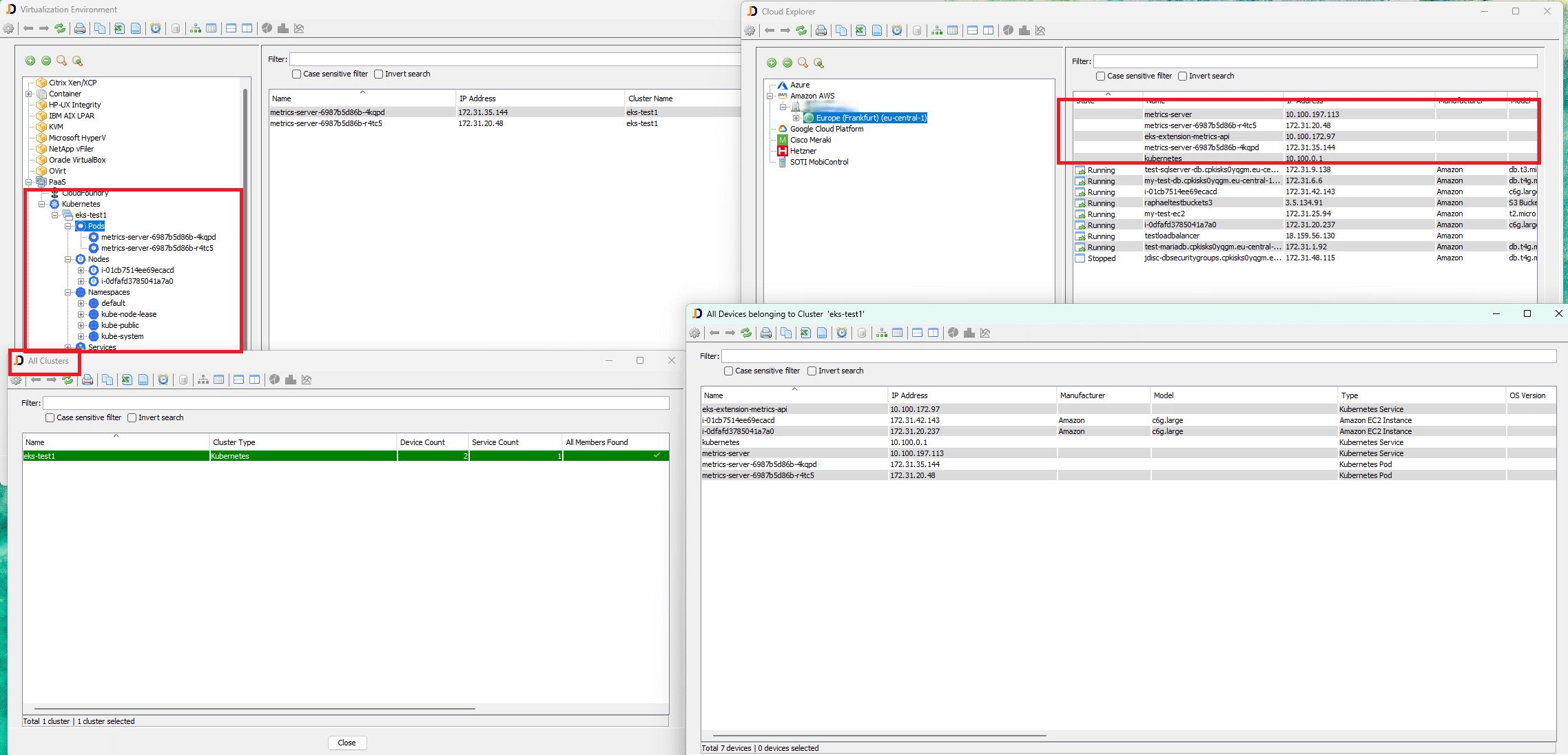

Discovered AWS EKS cluster displayed in JDisc with Kubernetes components
This image shows how JDisc identifies an AWS Kubernetes cluster and displays its resources in the UI

⚡ Alternative (No kubeconfig): Use a short‑lived EKS token

If you prefer not to configure a kubeconfig, you can provide JDisc with a direct bearer token and the API server hostname.

  1. Generate a token (valid ~12–15 minutes):

aws eks get-token \
–cluster-name eks-test1 \
–region eu-central-1 \
–output json

From the JSON output, copy the status.token value.

  1. Find the cluster API server hostname (from your cluster details or kubeconfig). It looks like:XXXXXXXXXXXXX.gr7.eu-central-1.eks.amazonaws.com
  1. In JDisc → Configuration → PaaS → Add new configuration
  • Choose Account mode
  • Hostname: paste the API server hostname (no scheme)
  • Token: paste the bearer token from step 1
  • Save and Test Connection

⚠️ Token expiry: The token is short‑lived. For repeated or scheduled discovery, prefer kubeconfig with role/user auth, or automate token refresh.

💬 Final Thoughts on EKS Kubernetes Discovery in JDisc

With these setup options, JDisc can now securely and flexibly scan Kubernetes clusters hosted on AWS EKS—using either IAM users or IAM roles. This empowers you to:

  • Discover live pods and nodes

  • Integrate token-based kubeconfig generation

  • Run discovery tools (like JDisc) using temporary access

If you’re aiming to align with AWS best practices, IAM Role-based access (especially via IRSA or EC2) is your best bet for scalable and secure Kubernetes discovery.

Let us know how it works for you—and what you’d like to see next in JDisc’s cloud-native support!

Stay cloud-ready,
Raphael Nikou

About The Author

Raphael Nikou
I am a Junior Java Software Developer at JDisc, where I specialize in the design and implementation of the Discovery engine. My primary focus is on enhancing the core functionalities of the Discovery component, ensuring accurate and efficient data retrieval and system integration. Feel free to contact me on LinkedIn.
